Scissor Lift

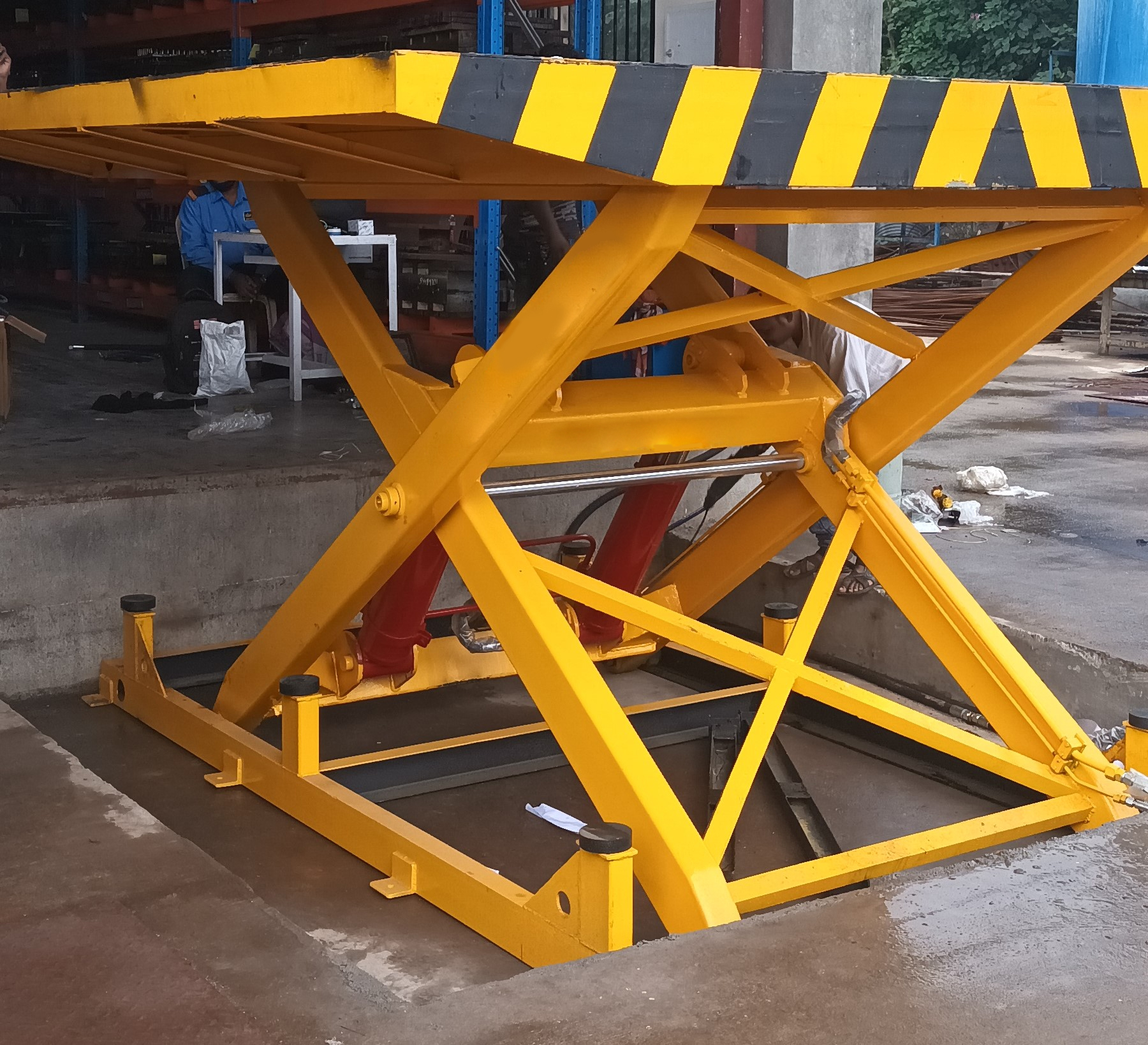

Single Scissor Lift

A single scissor lift is a lifting platform, typically using hydraulic power, that raises and lowers objects or personnel vertically. The "single" refers to having a single set of scissor-like arms beneath the platform, which extend and retract like scissors to raise or lower the platform. These lifts are commonly used for tasks like loading, unloading, and height adjustments in various industrial settings.

Plate form size 1500 1800 2000 2300 2500 3000 3500 4000 4500 5000
Closed Height (Ground level) 300 400 400 500 500 650 750 800 850 1050
Lift 900 1050 1200 1450 1500 1900 2100 2500 2750 3000
Raised Height (Ground level) 1200 1450 1600 1950 2000 2550
2850 3300 3600 4050
Manual yes
Hydraulic  yes
Batter Powered yes

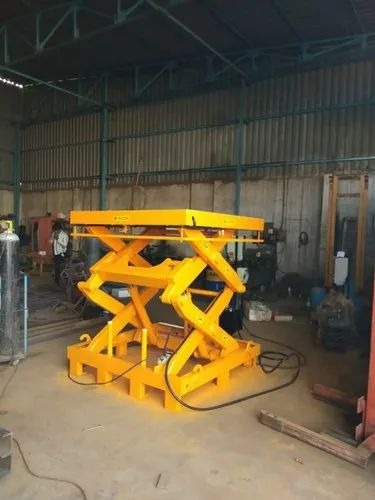

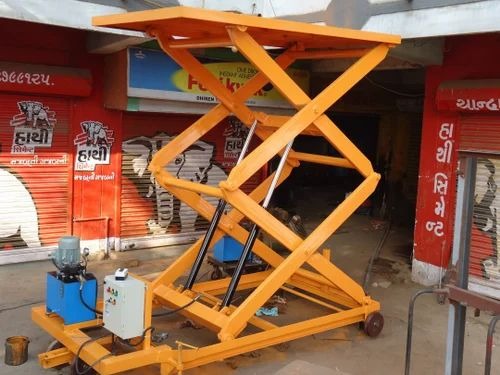

Double Scissor Lift

A double scissor lift is a lifting platform, typically using hydraulic power, that raises and lowers objects or personnel vertically. ​The big Double Scissor Lift engineering technology is designed to lift products to high elevations than the single scissor lift. This Lifting Table is ideal for use at all types of manufacturing and industrial facilities.

Plate form size 1500 1800 2000 2300 2500 3000 3500 4000 4500 5000
Closed Height (Ground level) 550 600 650 700 750 800 850 900 950 1100
Lift 1800 2100 2400 2900 3000 3800 4200 5000 5500 6000
Raised Height (Ground level) 2350 2700 3050 3600 3750 4600
5050 5900 6450 7100
Manual yes
Hydraulic  yes
Batter Powered yes

Triple Scissor Lift

A triple scissor lift is a type of lift table that uses three sets of scissor mechanisms (or "legs") to achieve a higher lift height compared to a single or double scissor lift. These lifts are often used for specialized applications where high-lift capabilities are needed, such as accessing mezzanines, processing or storage, and material transfer.

Plate form size 1500 1800 2000 2300 2500
Closed Height (Ground level) 700 850 900 1000 1300
Lift 2700 3150 3600 4350 4500
Raised Height (Ground level) 3400 4000 4500 5350 5800
Manual yes
Hydraulic  yes
Batter Powered yes
enquire now

"We are Committed to service quality and response time"
